scanCONTROL 30x2

๊ณ ์ •๋ฐ€ 2D / 3D ํ”„๋กœํŒŒ์ผ ์ธก์ •

์šฐ์ˆ˜ํ•œ ์„ฑ๋Šฅ์˜ 2D / 3D ๋ ˆ์ด์ €์Šค์บ๋„ˆ

๋ ˆ์ด์ €์Šค์บ๋„ˆ scanCONTROL 30x2๋Š” ์‚ฌ์ด์ฆˆ, ์ •ํ™•๋„, ์ธก์ • ์†๋„ ๋ฉด์— ์žˆ์–ด ํƒ์›”ํ•œ ์„ฑ๋Šฅ์„ ์ž๋ž‘ํ•˜๋Š” ํ”„๋กœํŒŒ์ผ ์„ผ์„œ์ž…๋‹ˆ๋‹ค. ํ•ด๋‹น ๋ ˆ์ด์ €์Šค์บ๋„ˆ๋Š” ๋ณด์ •๋œ 2D ํ”„๋กœํŒŒ์ผ ๋ฐ์ดํ„ฐ๋ฅผ ์ดˆ๋‹น ์ตœ๋Œ€ 800๋งŒ๊ฐœ ํฌ์ธํŠธ๋กœ ์ œ๊ณตํ•˜๋ฉฐ ์ตœ๋Œ€ ํ”„๋กœํŒŒ์ผ ์ฃผํŒŒ์ˆ˜๋Š” 10 kHz๋กœ, ๋™์ ์ธ ๊ณต์ •์—์„œ ์ •๋ฐ€ํ•œ ํ”„๋กœํŒŒ์ผ ์ธก์ •์„ ์œ„ํ•ด ์„ค๊ณ„๋˜์—ˆ์Šต๋‹ˆ๋‹ค. ์„ผ์„œ ๋งคํŠธ๋ฆญ์Šค๋Š” 1,024 ํฌ์ธํŠธ์˜ ํ•ด์ƒ๋„๋ฅผ ์ œ๊ณตํ•˜๋ฉฐ, ํฌ์ธํŠธ ๊ฐ„ ๊ฑฐ๋ฆฌ๋Š” 24 ยตm๋กœ ์•„์ฃผ ์ž‘์€ ๋””ํ…Œ์ผ ์—ญ์‹œ ์ •ํ™•ํ•˜๊ฒŒ ์ธก์ •ํ•  ์ˆ˜ ์žˆ์Šต๋‹ˆ๋‹ค.

Get in touch with us!
Download now: catalogs, manuals, software
logo

Characteristics

  1. Measuring range z-axis up to 600 mm
  2. Measuring range x-axis up to 380 mm
  3. Measurement speed up to 10 kHz
  4. Measuring rate up to approx. 8,000,000 points/sec
  5. Line linearity z-axis from 2 ฮผm
  6. Resolution x-axis up to 1,024 points
  7. Available also with blue laser
  8. Compatible with Cognex VisionPro
  9. Fastest SMART evaluation directly in the sensor: up to 10 kHz
  10. Optimal connection to PLC due to UDP bundling without data loss
  11. Certified according to UL 61010-1
[]
๋ฌธ์˜ํ•˜๊ธฐ
Micro-Epsilon Korea Ltd.
Logo Micro-Epsilon
+82 31 602-8890
๋ฌธ์˜ ์–‘์‹
Your request for: {product}
* ํ•„์ˆ˜ ํ•ญ๋ชฉ
๋‹น์‚ฌ๋Š” ๊ฐœ์ธ ์ •๋ณด ๋ณดํ˜ธ๋ฅผ ์ตœ์šฐ์„ ์œผ๋กœ ์ƒ๊ฐํ•ฉ๋‹ˆ๋‹ค. ์ž์„ธํ•œ ๋‚ด์šฉ์€ ๊ฐœ์ธ์ •๋ณด์ฒ˜๋ฆฌ๋ฐฉ์นจ ์„ ์ฐธ๊ณ ํ•˜์‹œ๊ธฐ ๋ฐ”๋ž๋‹ˆ๋‹ค.
Laser scanner with large measuring range

Large measuring range with 430 and 600 mm

The scanCONTROL 30x2 laser scanners are now also available with a large measuring field of 430 x 390 mm or 600 x 600 mm. This allows large measuring objects to be detected with high accuracy.

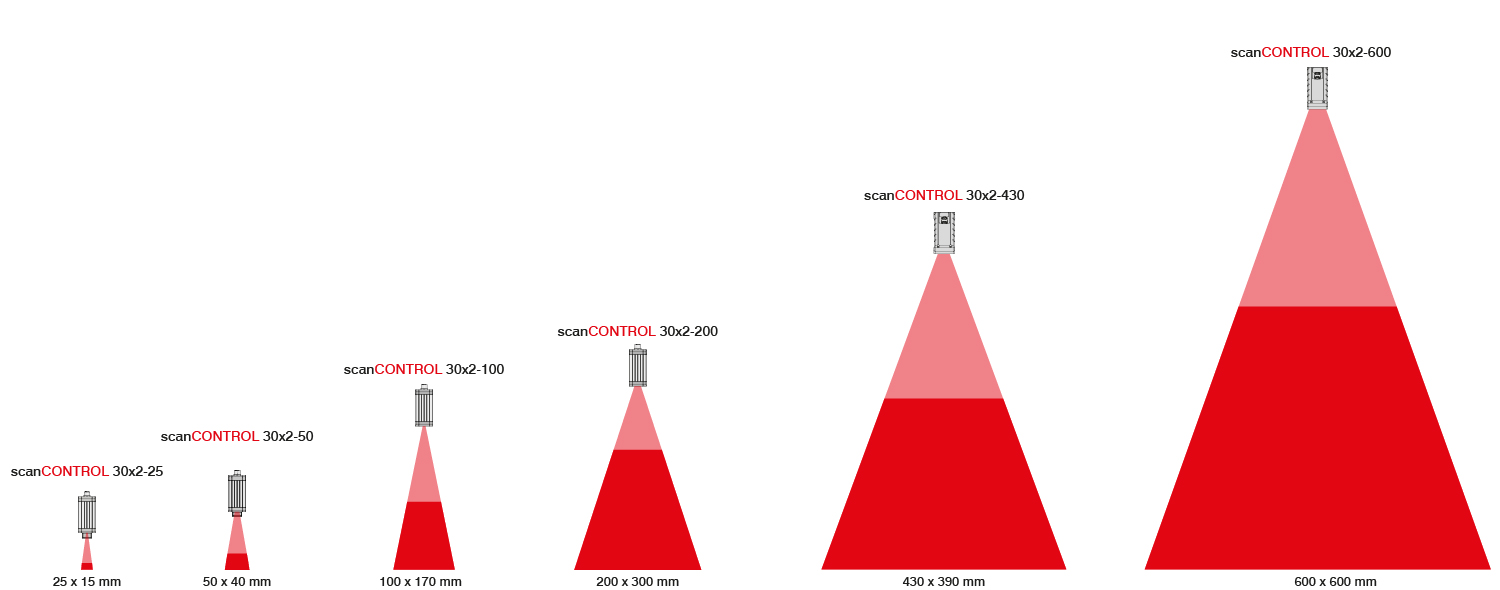

์‚ฌ์šฉ ๊ฐ€๋Šฅํ•œ ์ธก์ • ๋ฒ”์œ„

Possible measuring ranges scanCONTROL 30x2
