Tire component offline profilometer

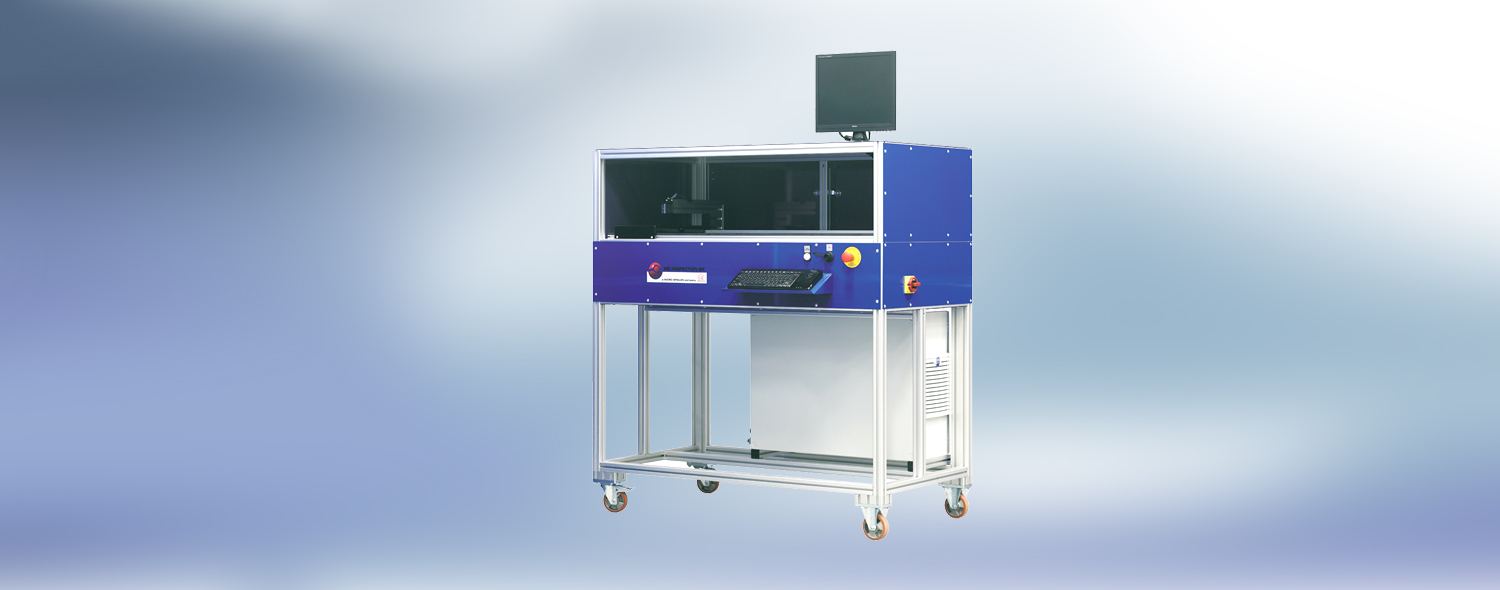

thicknessCONTROL TCP 8302.T-Offline is a line-independent system for measuring the profile thickness and width. These offline profilometers check several lines semi-automatically and extremely cost-effectively.

Improved quality control
An integrated, traversing C-frame with two laser-optical triangulation sensors measures the entire profile. The system includes fully automated and integrated calibration. The calibration and inspection process takes approx. 10 seconds. The profilometer visualization software includes tools for statistical processing of measured profile results and for outputting measurement results in various formats for further evaluation.

The measuring system is fully covered which minimizes the impact of ambient light and unwanted reflections. The offline profilometer is a cost-effective solution for profile measurements outside the production line.
