Tire piece weight inspection

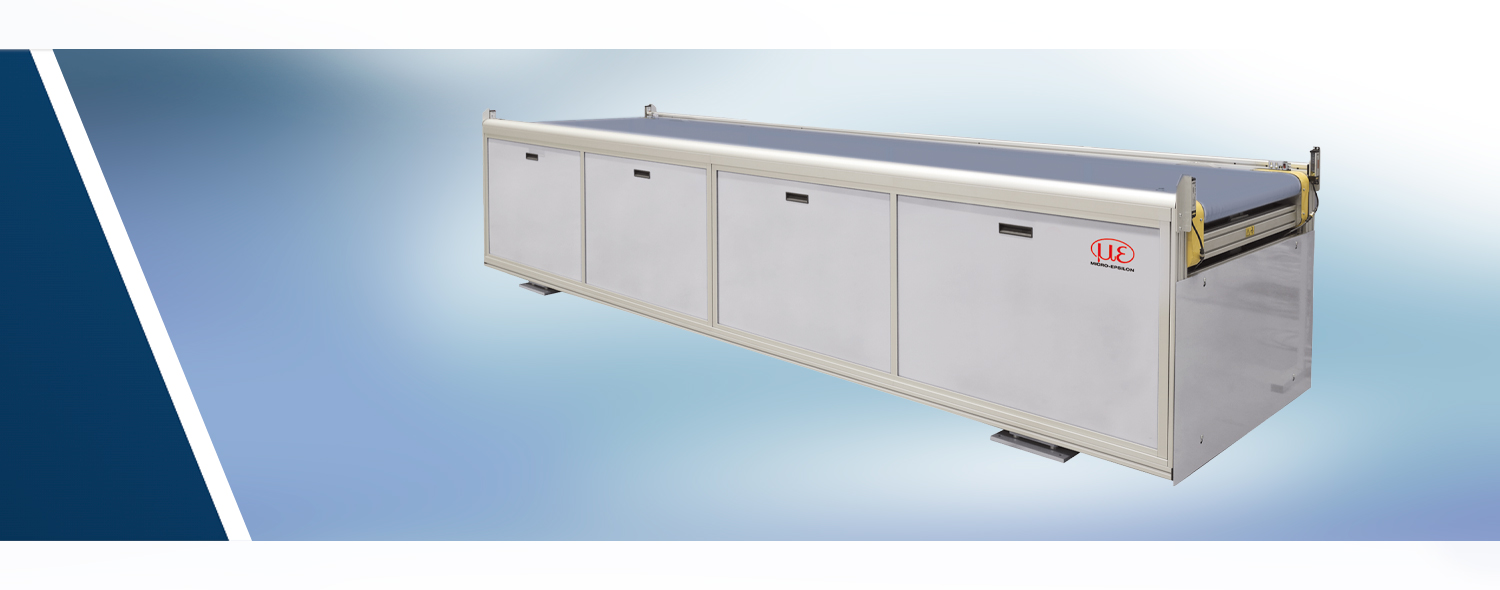

The TPWI 8302.LC is designed for inline weight measurement of individual tread profiles for passenger and truck tires. Based on the force measurement principle, the measuring system uses four high precision load cells which measure the deflection of the conveyor belt.

The sensor elements are attached to a solid construction that ensures the long-term mechanical stability of the system. Due to its robust design, the inspection system is ideally suited to harsh environments behind the extrusion head. The data from the load cells is processed in the integrated controller, which mathematically determines the measured weight. The software included offers a variety of options for measurement data processing, definition of display profiles, statistical analysis of measured profiles and diagnostic tools.
