3D measurement of coil springs

Qsigma designed the Spring Measurement System (SMS) for precise 3D measurement of coil springs and other components. It is used, among other things, in the development of prototypes and 100% inspection of series parts. The SMS automatically identifies the spring, evaluates the wire contour and determines the wire diameter, even if it is subject to strong fluctuations.

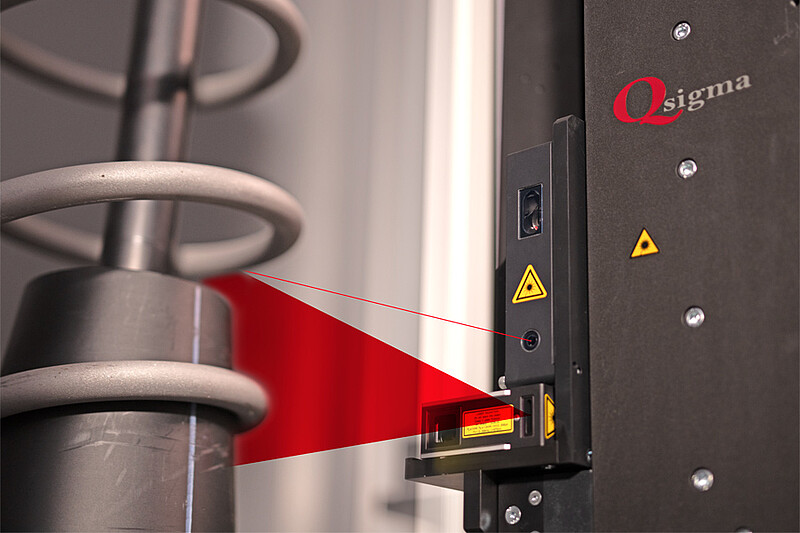

The scanCONTROL 2950 sensor has a large measuring field in both the Z and X directions. This enables extremely fast scanning of springs up to a height of 70 cm and radially up to 30 cm. The wide range combined with high point density enables precise evaluation of the wire diameter
